Junction Boxes

Pyrotech is pleased to launch a full range of IP55 / IP65 small enclosures and accessories for indoor as well as outdoor applicable. Small enclosures are suitable for industrial applications in all sectors, factory automation, machine control panel, electrical, CCTV, telecom and many other projects.

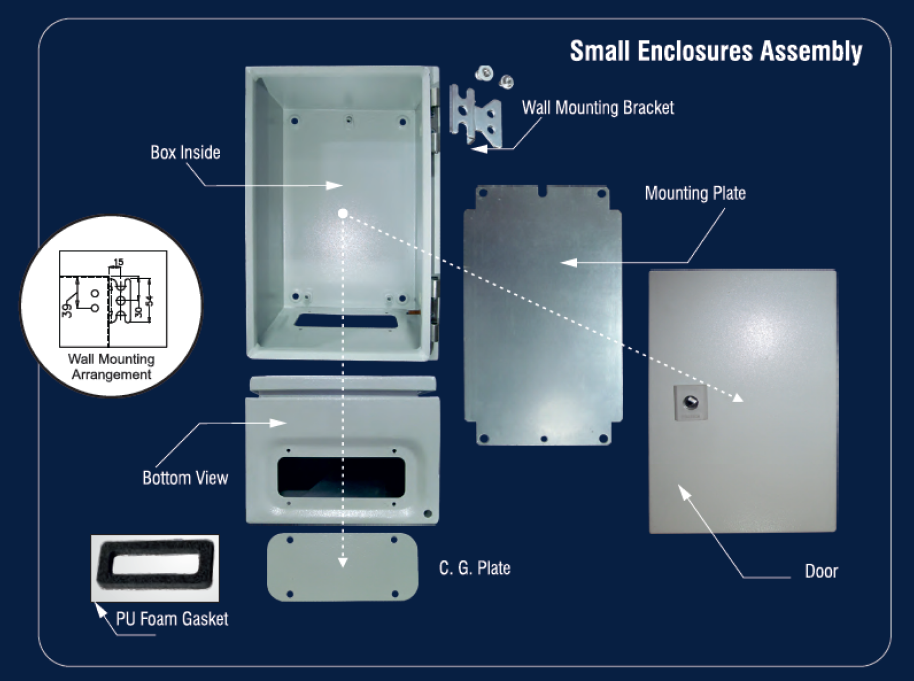

Technical Specification

  • Junction box will be made of 1.6mm th. CRCA MS sheet. In Welded Construction.
  • Front door will be made of 1.6mm th. CRCA MS sheet.
  • Mounting plate will be made of 2.0mm th. GI / ALU. Zinc sheet.
  • Bottom cable gland plate will be made of 2.0mm th. CRCA MS sheet.
  • Finish :- Chemical treatment shall be done with NANO Technology process from Henkel ( Germany ), followed by Hybrid Epoxy Polyester powder coating.
  • Shade Internal & External :- RAL 7035.
  • Self gripping PU foam gasket will be provided in door seal.
  • Protection class : IP65 ( without cutouts ).
  • Single point cam locks provided.
Width up to 200 mm

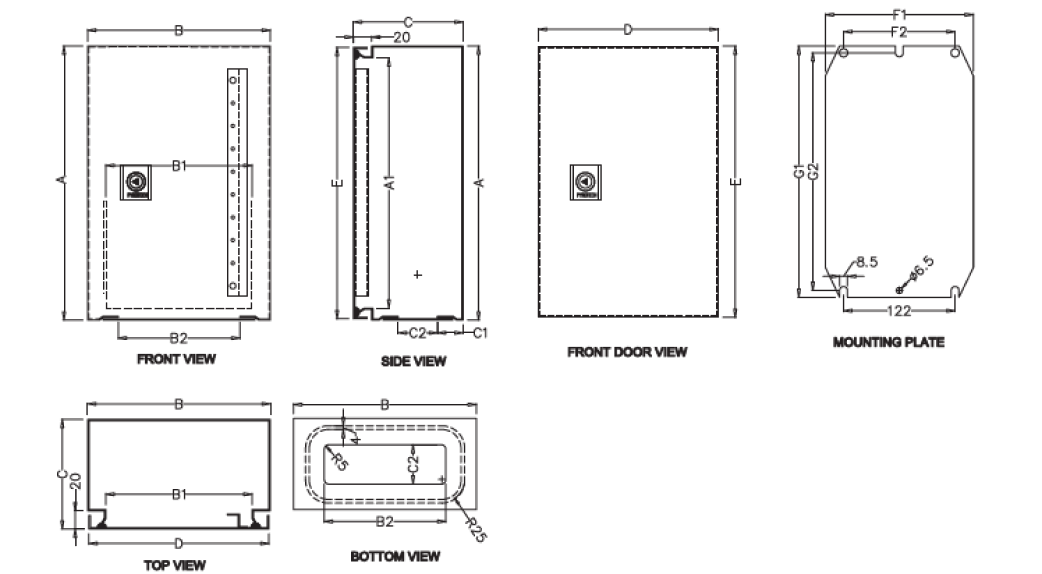

S.N. Product Part No. Size of Box (H×W×D) Mounting Plate Size A A1 B B1 B2 C C1 C2 D E F1 F2 G1 G2
1 080MS01 300×200×120 162×275 300 260 200 160 133 120 28 43 197 297 162 122 275 260
2 080MS02 300×200×155 162×275 300 260 200 160 133 155 28 43 197 297 162 122 275 260
Width up to 600 mm

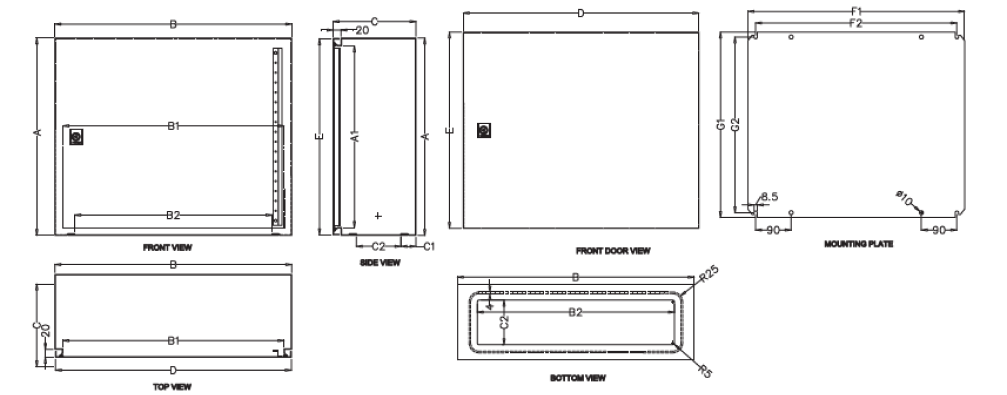

S.N. Product Part No. Size of Box (H×W×D) Mounting Plate Size A A1 B B1 B2 C C1 C2 D E F1 F2 G1 G2
3

080MS03

 300×300×210 254×275 300 260 300 260 233 210 33 45 297 297 254 215 275

250
4 080MS04 300×380×155 334×275 300 260 380 340 303 155 33 43 377 297 334 295 275 250
5 080MS05 300×380×210 334×275 300 260 380 340 303 210 33 63 377 297 334 295 275 250
6 080MS06 380×380×210 334×355 380 340 380 340 303 210 33 63 377 377 334 295 335 330
7 080MS07 380×300×210 254×355 380 340 300 260 233 210 33 45 297 377 254 215 355 330
8 080MS08 380×600×210 549×355 380 340 600 560 500 210 38 113 597 377 549 510 355 330
9 080MS09 380×600×350 549×355 380 340 600 560 500 350 38 113 597 377 549 510 355 330
10 080MS10 400×300×210 254×375 400 360 300 260 233 210 33 45 297 397 254 215 375 350
Width up to 800 mm

S.N. Product Part No. Size of Box Mounting Plate Size A A1 B B1 B2 C C1 C2 D E F1 F2 G1 G2
11 080MS11 500×400×210 354×475 500 460 400 360 303 210 38 113 397 497 354 315 475 450
12 080MS12 500×500×210 449×479 500 460 500 460 303 210 38 113 497 497 449 410 470 445
13 080MS13 500×500×300 449×470 500 460 500 460 303 300 38 113 497 497 449 410 470 445
14 080MS14 600×380×210 334×570 600 560 380 340 303 210 33 63 377 597 334 295 570 545
15 080MS15 600×380×350 334×570 600 560 380 340 303 350 84 113 377 597 334 295 570 545
16 080MS16 600×600×210 549×570 600 560 600 560 500 210 38 113 597 597 549 510 570 545
17 080MS17 600×600×350 549×570 600 560 600 560 500 350 38 113 597 597 549 510 570 545
18 080MS18 760×600×210 549×730 760 720 600 560 500 210 38 113 597 757 549 510 730 705
19 080MS19 760×600×350 254×375 760 720 600 560 500 350 38 113 597 757 549 510 730 705
20 080MS20 760×760×210 704×730 760 720 760 720 500 210 38 113 757 757 704 665 730 705
21 080MS21 760×760×300 704×730 760 720 760 720 500 300 38 113 757 757 704 665 730 705
22 080MS22 1000×800×300 739×955 1000 960 800 760 500 300 70 113 797 997 739 700 955 930
Width up to 1000 mm
S.N. Product Part No. Size of Box (H×W×D) Mounting Plate Size A A1 B B1 B2 C C1 C2 D E F1 F2 G1 G2
23 080MS23 760×1000×210 944×730 760 720 1000 960 303 210 38 113 997 757 944 905 730 705
24 080MS24 760×1000×300 944×730 760 720 1000 960 303 300 38 113 997 757 944 905 730 705
25 080MS25 1000×800×300 739×955 1000 960 800 760 203 300 70 113 797 997 739 700 955 930

Note : 1. In B, C, D Type Glass Door can be given. 2. Special sizes are available on request.

Steel Enclosures

Introduction:

CRCA-made enclosures are used for a range of applications in a wide spectrum of industries. Considering the sophisticated applications, CR Sheets are required to meet high standards of inherent quality, surface finish and close tolerances on dimensions. Designed to house electrical & electronics controls, instruments & components in indoor or outdoor areas where dirt, dust, oil and water or other contaminants are present.

Salient Features:

  • High quality CRCA shuts are used.
  • Seams continuously welded & smoothly grinded.
  • Surface finish: Hot 7 tank pretreatment process followed by conveyorized powder coating. Optionally, painted using epoxy and polyurethane-based paint.
  • Protection class up to IP-55, IP-65.
  • Smooth blended surfaces and attractive finish complement high tech electronic equipment.
  • Standard Powder Coating in RAL 7032/7035.

Stainless Steel

Introduction:

Designed for use in areas regularly hosed down or otherwise very wet. Suitable for outdoor use where dirt, dust, oil, water or other contaminants are present. Typically, useful in an environment where serious corrosion problems exist-mainly in chemical and petrochemical industries and in areas where caustic elements or alkalis are present.

Salient Features:

  • SS-304 and SS-316 sheet are used
  • Seams continuously welded.
  • Buff finish provided for high aesthetic appeal.
  • Protection class up to IP-55, IP-65.
  • Stainless steel screws and clamps provided .Grounding stud on sides.
  • Full line of field installable accessories
